Box mod | four checks before you pay

A box mod is too often chosen on its maximum wattage, its screen or its colour. A few days later the tank overhangs the edge, the cell runs warm near the end of its charge, or the 200 W printed on the side turns out to be pointless. The hardware is rarely at fault. The order of the questions is, because the mod was picked before anyone knew what it had to power. This guide works the other way round and starts from the tank.

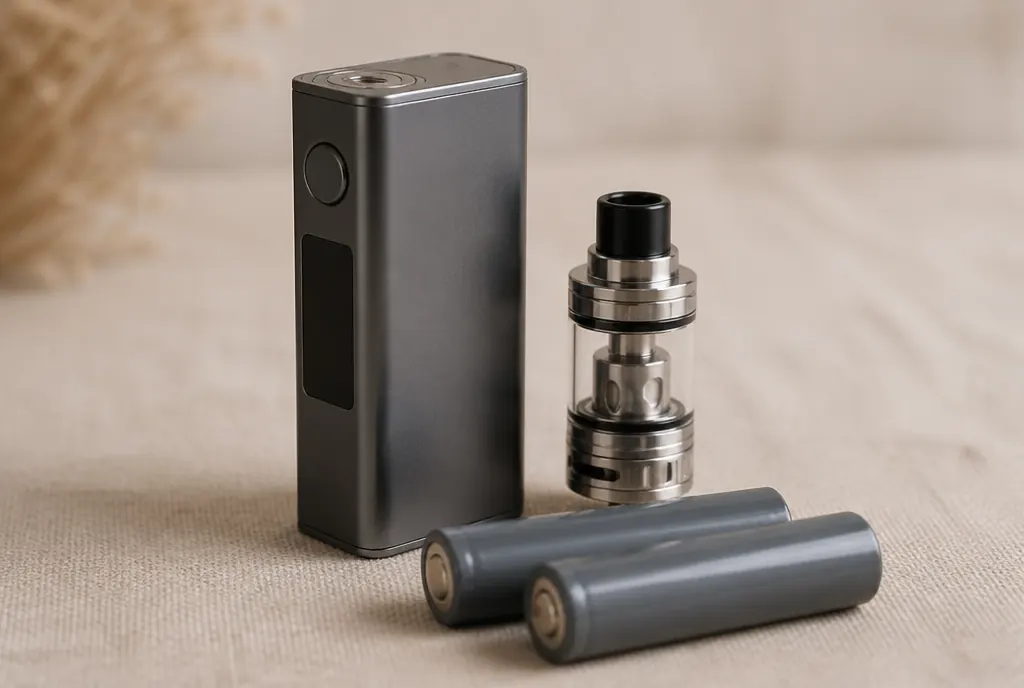

What a box mod actually is

A box mod is the power half of an e-cigarette. Inside the housing sit an energy source (a built in battery or removable cells), a circuit board known as the chipset, and a connector that the tank screws onto. The chipset regulates the power sent to the coil, runs the modes and the display, and handles protection against short circuits and overheating.

The right box mod is therefore the one that powers your tank properly. Fix the tank first, then run four checks on the mod in this order, power source, wattage, thread and diameter, and batteries. If you are still torn between a pod, a mod and a pen, the four questions on how to choose a vape settle that before anything else.

Check one, how the box mod is powered

Two families exist, and the choice shapes the lifespan of the device more than its power. Geekvape’s Aegis Solo 3 makes the point neatly, since it comes either with a 3000 mAh built in battery or with a bay for one 18650 cell, at the same 100 W maximum.

Built in battery

A mod with a built in battery charges through a USB-C port. Compact, with no dedicated charger and no cells to look after, it suits life on the move. The catch arrives with time. When the battery tires, the whole mod has to be replaced.

Removable 18650 or 21700 cells

Mods with removable cells generally take 18650s or 21700s. The name gives the size, an 18650 being 18 mm across and 65 mm long, a 21700 being 21 mm by 70 mm. A tired cell is swapped without changing the mod.

Lost Vape’s Thelema Solo 100W takes either a 21700 or an 18650, neither supplied. Budget for a proper external charger from day one.

Check two, the wattage your tank actually needs

Every coil carries a power range, printed on the coil itself or on its box. That figure, not the maximum wattage of the mod, is the one that counts.

Geekvape’s Z 0.4 ohm coil runs between 50 and 60 W, the Z 0.2 ohm between 70 and 80 W. A 100 W mod covers both with room to spare. A 200 W dual cell mod adds nothing in power for them, only battery life and weight.

Check the resistance range the mod accepts as well. The Thelema Solo 100W works from 0.15 to 5 ohms, so a 0.12 ohm coil falls outside the range the manufacturer allows. A coil pushed beyond its power range wears out sooner, which our guide on when to change a vape coil covers.

Check three, the 510 thread and the tank diameter

Nearly every box mod uses the 510 connection, a standard thread that fits most tanks on the market.

For diameter, compare the tank with the narrowest dimension of the mod’s top plate. The Thelema Solo 100W measures 39 × 28.5 × 97.5 mm. On paper, a 25 mm tank sits inside the 28.5 mm depth, while a 30 mm one hangs over the edge.

Total height matters too, since it decides which pocket the kit fits in. In the UK, refillable tanks are capped at 2 ml, so ignore the larger capacities quoted on some overseas spec sheets.

Check four, batteries and safety

A regulated mod protects against short circuits, but it cannot make an unsuitable cell safe. Two checks are enough, the current drawn and the condition of the cell.

The sum spec sheets leave out

A cell is chosen by its continuous discharge rating, the CDR, given in amps. To find out what the mod will ask of it, divide the power by the voltage of the cell.

Lost Vape gives a battery voltage of 3.0 to 4.2 V for the Thelema Solo 100W. At 100 W, with a nearly flat cell at around 3.0 V, the cell supplies roughly 33 A (100 ÷ 3), before the chipset’s conversion losses are counted. At 50 W the same sum gives roughly 17 A.

So it is the wattage of your tank, not the figure printed on the mod, that decides which cell to buy. A cell pushed beyond its rating heats up and degrades.

Wraps, chargers and carrying cells

A split or damaged wrap, the sleeve around the cell, is replaced straight away because it exposes the cell to a short circuit. In a dual cell mod, use two identical cells, as mismatched cells discharge unevenly. Outside the mod, cells travel in a dedicated case, never loose in a pocket with keys or coins.

Three profiles, three box mods

The models named here are examples taken from spec sheets, not a ranking.

Profile	Type of mod	Example noted
On the move, no cells to manage	Built in battery, USB-C charging	Geekvape Aegis Solo 3, 3000 mAh version, up to 100 W, IP68 rated
All rounder, extendable battery life	One removable 21700 or 18650 cell	Lost Vape Thelema Solo 100W, 5 to 100 W, coils from 0.15 to 5 ohms
Power hungry tank	Two cells	Geekvape Aegis Legend 5, 5 to 200 W, two 18650 cells not supplied

Our position is clear. For a sub-ohm tank set between 50 and 80 W, a box mod taking one removable cell and offering 100 W is enough. A dual cell mod only earns its place if your tank genuinely needs more than 100 W. The built in battery suits anyone who refuses to manage cells.

The traps before you check out

Three mistakes can be spotted before buying, on the product page.

First trap, the mechanical mod. It sometimes looks like a box, but it contains no electronics and passes on the power of the cell with no settings and no screen. It assumes a working grasp of Ohm’s law and battery safety, and it is not suitable as a first mod.

Second trap, the kit without cells. The Thelema Solo 100W and the Aegis Legend 5 are sold without cells, and without them or a charger the mod will not switch on the day it arrives.

Third trap, headline wattage. A 200 W figure impresses at the counter, but for a coil running at 60 W the difference is paid mainly in weight.

FAQ

These questions come up when moving from a pod to a first mod. The answers add to the four checks rather than repeating them.

Is a box mod suitable for a beginner?

Yes, provided it is a regulated mod paired with a tank whose power range is clearly marked. Several chipsets offer an automatic mode that picks the wattage from the coil they detect, which saves adjusting watts in the first weeks.

How long does a box mod battery last?

No fixed figure holds, because battery life depends mainly on the power used. At equal capacity, a mod set to 80 W drains about twice as fast as at 40 W, and at equal power a 3000 mAh battery lasts in theory twice as long as a 1500 mAh one.

Can I charge the cells inside the mod?

Many mods that take removable cells have a USB-C port, the Thelema Solo 100W among them. Retailers still recommend a proper external charger, which charges each cell separately.

What does IP68 mean on a mod?

The rating signals protection against dust and against immersion in water, under conditions set by the manufacturer. Shock resistance, which Geekvape highlights on its Aegis range, is a separate claim from the rating.

Should I update the firmware on my mod?

When the manufacturer releases a firmware update, installing it is part of sensible upkeep. The procedure varies from one model to another, and the manual for your mod is the reference.

Choosing a box mod from the tank outwards

A mod is judged by what it powers. Fix the tank and the power range of its coil first, then check the power source, the useful wattage, the thread and diameter, and a cell matched to the current drawn. Our grid for the best e-cigarette applies the same logic to the whole kit, starting from the other end.

For most adult vapers, a 100 W box mod with a removable cell comfortably covers a sub-ohm tank. Keep the current sum in mind when buying cells, and the rest happens on the consumables side, where UK rules cap nicotine e-liquid at 20 mg/ml in 10 ml bottles.
